DEA-Compliant Vaults Built to Secure Your Pharmaceutical Future

At Vault Structures Inc., we specialize in UL-rated and DEA-compliant security solutions, meticulously engineered to protect your valuable assets and ensure seamless regulatory adherence for the pharmaceutical and medical industries. Trusted by institutions nationwide, including the Smithsonian’s Gallery of Numismatics for its high-security needs.

Our experts will provide a tailored solution.

Image (10)

Your Compliance
is Our Priority

Navigating complex regulations is paramount in the pharmaceutical and medical sectors. Vault Structures Inc. offers unparalleled expertise in compliance with **21 CFR 1301.72** and other critical industry standards. Our **turnkey service** includes design, manufacturing, and installation, ensuring your security infrastructure not only meets but exceeds all governmental requirements, providing you with complete peace of mind.

DEA Cages

DEA compliance is not optional—it is the foundation of your ability to operate. Our DEA-approved storage solutions are engineered to meet or exceed all physical security requirements mandated by the Drug Enforcement Administration in Title 21 of the Code of Federal Regulations (CFR) Part 1301.72.

We eliminate the guesswork, offering both high-security Vault Structures for Schedule I/II substances and robust Wire Cages for Schedules III, IV, and V, ensuring you are fully prepared for any DEA audit.

DEA-approved wire cage storage system meeting CFR 1301.72 security requirements inside a controlled facility.

DEA Approved Cages (Schedules III, IV, & V)

Modular wire-mesh cages are designed for schedules with lower security requirements.

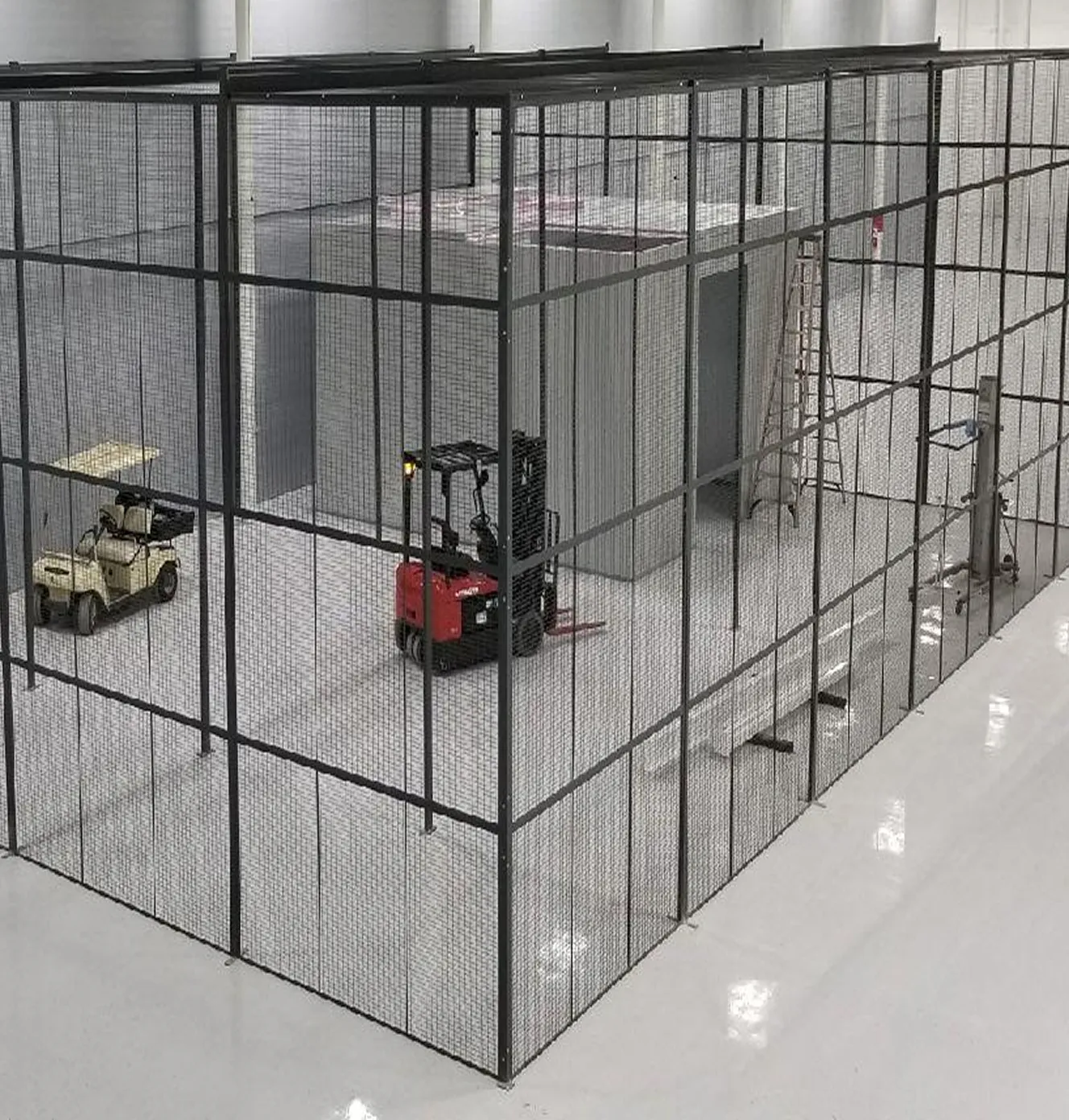

DEA-compliant wire cage structure built with heavy-duty steel posts and mesh panels.

Structure

Built with a minimum No. 10 gauge steel fabric and posts at least one inch in diameter, anchored with pinned or brazed lag bolts.

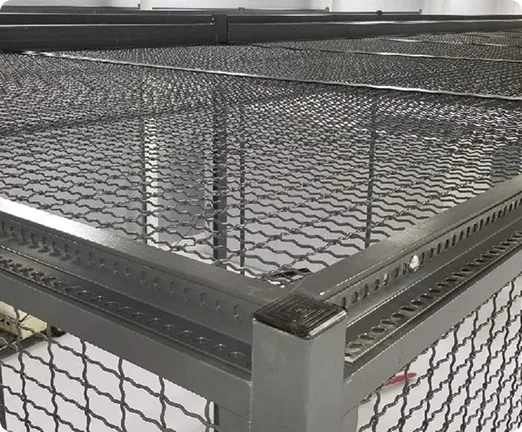

Close-up of DEA-approved wire mesh showing openings no larger than 2.5 inches.

Mesh Size

Openings are no larger than 2.5 inches across.

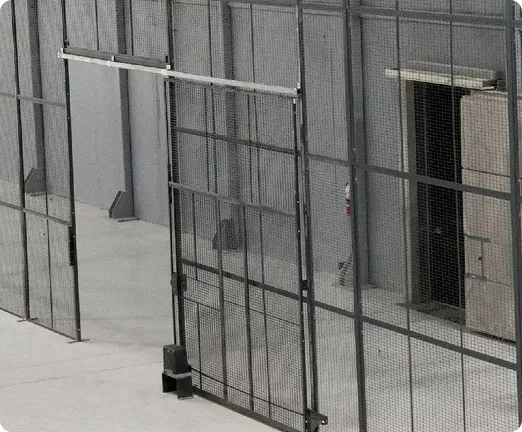

DEA-compliant wire cage door with self-closing and self-locking access control hardware.

Access Control

Features self-closing and self-locking doors.

Secure wire cage ceiling panel constructed from the same reinforced material as the cage walls.

Ceiling

Constructed of the same material or securely attached flush to the facility ceiling.

High-Security Vault Structures (Schedules I & II)

Heavy-duty vault systems for the highest security protection of Schedules I and II substances.

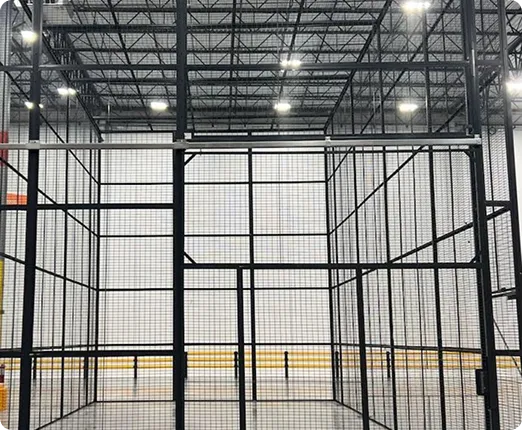

Reinforced DEA-compliant wire cage construction showing steel walls, floor, and ceiling framework.

Construction

Walls, floors, and ceilings meet the structural equivalent of 8 inches of reinforced concrete.

Close-up of DEA-approved wire mesh showing openings no larger than 2.5 inches.

Doors

High-security door and frame units meet mandatory performance ratings for 30 man-minutes against surreptitious entry and 10 man-minutes against forced entry.

DEA-compliant wire cage door with self-closing and self-locking access control hardware.

Operational Security

Includes a self-closing/self-locking day-gate for frequent access.

Secure wire cage ceiling panel constructed from the same reinforced material as the cage walls.

Alarm Integration

Designed for seamless integration with required alarm systems, including door contact switches and detection devices.

Solutions Built for Pharmaceutical & Medical Security

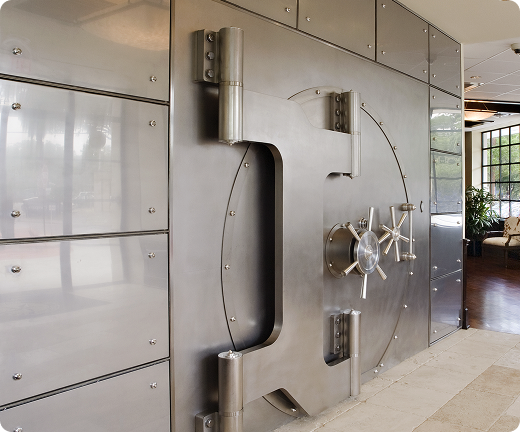

Image (11)

Modular Vaults
& Doors

Engineered to meet stringent DEA specifications and UL-rated for superior protection. Our modular designs allow for flexible, scalable security.

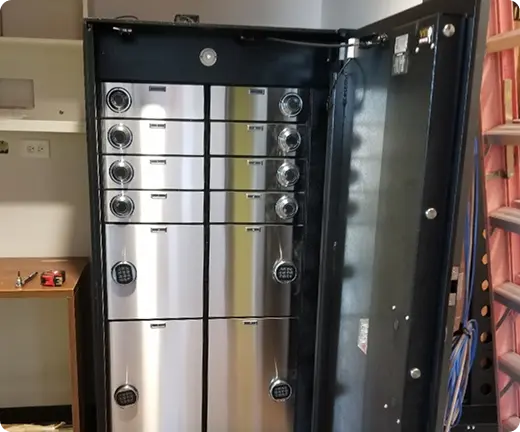

High-Security Safes & Lockers

Individually rated safes and lockers providing robust protection for Schedule I-V controlled substances and valuable equipment.

Custom Cages
& Vaults

Tailored security solutions for unique spaces, integrating seamlessly with existing infrastructure to create secure storage areas.

Your Streamlined Security Process

Request a Quote

Start by requesting a detailed, no-obligation quote tailored to your specific security requirements.

Expert Consultation

Our security specialists will conduct an in-depth consultation to understand your needs and regulatory landscape.

Custom Solution

We design and engineer a UL-rated, DEA-compliant security solution precisely for your facility.

Turnkey Installation

Our certified team provides seamless, professional installation, ensuring minimal disruption to your operations.

What Our Clients Say

“Vault Structures Inc. delivered an unparalleled security solution for our new corporate headquarters. Their expertise and attention to detail were exceptional.”

Dr. Emily Roberts

Lead Pharmacist, Pharma Solutions Inc.

“Vault Structures Inc. delivered an unparalleled security solution for our new corporate headquarters. Their expertise and attention to detail were exceptional.”

Michael Chen

Operations Director, BioMed Labs

“Vault Structures Inc. delivered an unparalleled security solution for our new corporate headquarters. Their expertise and attention to detail were exceptional.”

Sarah Miller

Facility Manager, Apex Medical Group

Ready to Protect Your Assets and Ensure Compliance?

Contact us today for a free consultation and customized quote.

Or call us directly at (239) 332-3270
